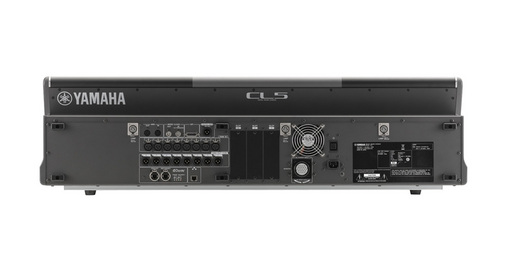

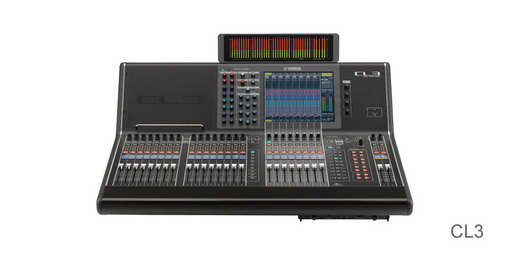

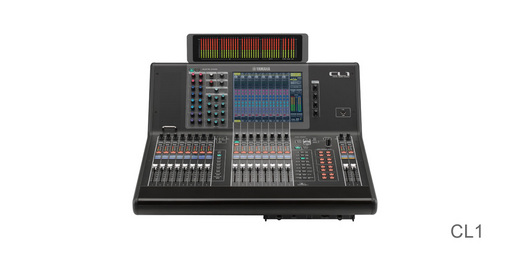

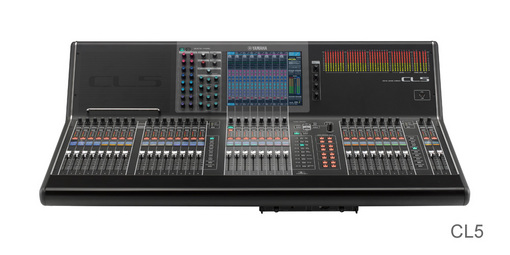

General specifications | CL5 | CL3 | CL1 |
Sampling frequency rate | Internal | 44.1kHz / 48kHz | 44.1kHz / 48kHz | 44.1kHz / 48kHz |
External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) |
Signal delay | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz | Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz |
Total harmonic distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min. |
Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT |
Dynamic range | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. | 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min. |
Crosstalk | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. | -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min. |
Power requirements | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz |
Power consumption | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W | 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W |
Dimensions | W | 1053mm (41 1/2in) | 839mm (33 1/8in) | 648mm (25 5/8in) |
H | 299mm (11 3/4in) | 299mm (11 3/4in) | 299mm (11 3/4in) |
D | 667mm (26 1/4in) | 667mm (26 1/4in) | 667mm (26 1/4in) |
Net weight | 36kg (79.4lb) | 29kg (63.9lb) | 24kg (52.9lb) |
Others | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C | Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C |
