JBL

AC2212-00

技術規格AC2212 00isacompact2-wayfullrangeloudspeakersystemcomprisedofone300mm(12in)low frequencydriverandone38mm(1 5in)exit 44mm(

咨詢熱線：010－84572118
  • 產品特性
  • 詳細參數

技術規格

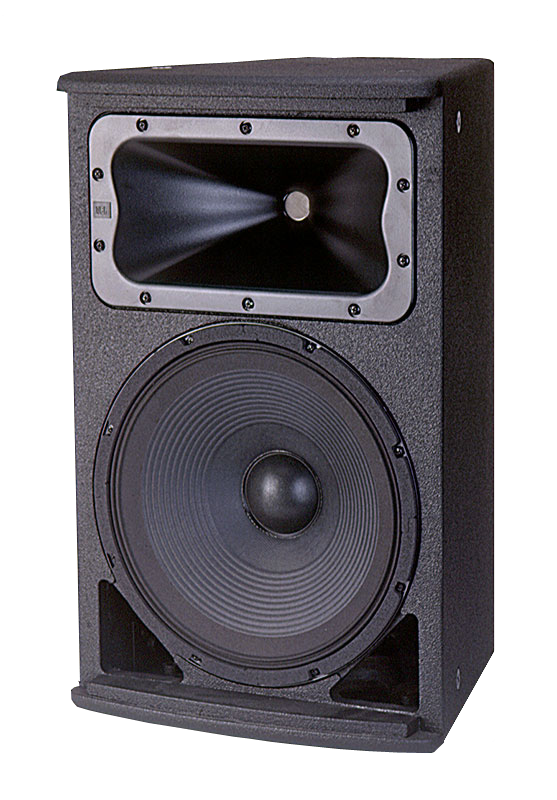

AC2212/00 is a compact 2-way full range loudspeaker system comprised of one 300 mm (12 in) low frequency driver and one 38 mm (1.5 in) exit/ 44 mm (1.75 in) voice-coil compression driver.
Features :
?100° x 100° Coverage.
?PT? Progressive Transition? Waveguide for good pattern control with low distortion.
?Bi-Amp / Passive Switchable.
?Optional U-Bracket Model MTU-4.
?Optional planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center. See Array Guide.
?For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues.


Specifications :
Frequency Range50 Hz - 19 kHz (-10 dB)
Frequency Response55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern100°x 100°
Directivity Factor (Q)7.1
Directivity Index (DI)8.5 dB
Crossover ModesBi-amp/Passive switchable
Passive Crossover Slopes4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Transducer Power Rating (AES)LF: 300 W (1200 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 50 W (200 W peak), 2hrs
Long-Term System Power Rating (IEC)Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPLBi-amp mode:
LF: 120 dB-SPL cont avg
(126 dB peak)
HF: 126 dB-SPL cont avg
(132 dB peak)
Passive mode:
120 dB-SPL cont avg
(126 dB peak)
System SensitivityPassive mode: 95 dB SPL (1W @ 1m)
