JBL

AC2212-95

技術規格AC2212 95isacompact2-wayfull-rangeloudspeakersystemcomprisedofone300mm(12in)low frequencydriverandone25mm(1in)voice-coilc

咨詢熱線：010－84572118
  • 產品特性
  • 詳細參數

技術規格

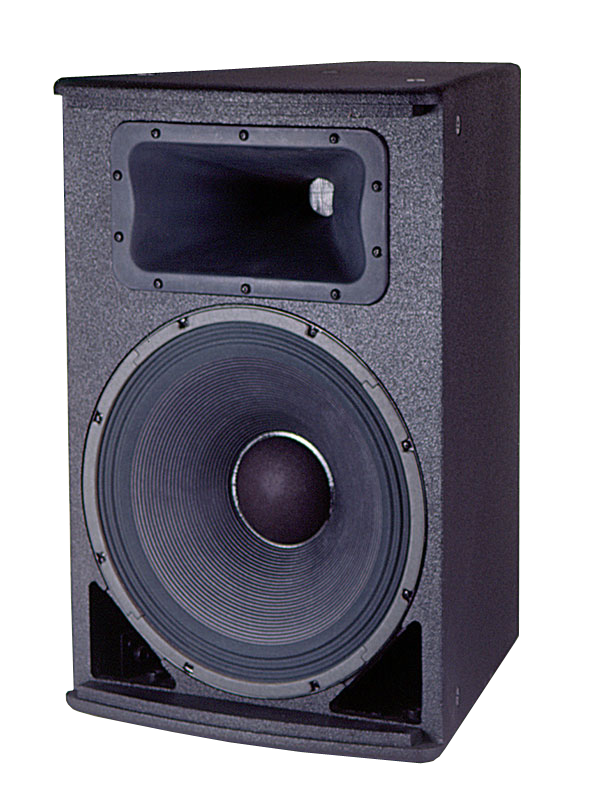

AC2212/95 is a compact 2-way full-range loudspeaker system comprised of one 300 mm (12 in) low frequency driver and one 25 mm (1 in) voice-coil compression driver.
Features :
?90° x 50° Coverage.
?PT? Progressive Transition? Waveguide for good pattern control with low distortion.
?Bi-Amp / Passive Switchable.
?Optional U-Bracket Model MTU-4.
?Optional planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center. See Array Guide.
?For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay / fill locations of larger systems.


Specifications :
Frequency Range50 Hz - 19 kHz (-10 dB)
Frequency Response55 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern90°x 50°
Directivity Factor (Q)8.9
Directivity Index (DI)9.5 dB
Crossover ModesBi-amp/Passive switchable
Passive Crossover Slopes3rd order (18 dB/oct) Butterworth HP & LP, 1700 Hz
Transducer Power Rating (AES)LF: 300 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2hrs
Long-Term System Power Rating (IEC)Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPLBi-amp mode:
LF: 120 dB-SPL cont avg
(126 dB peak)
HF: 127 dB-SPL cont avg
(133 dB peak)
Passive mode:
120 dB-SPL cont avg
(126 dB peak)
System SensitivityPassive mode: 95 dB SPL (1W @ 1m)
