JBL

AC2215-95

技術規格AC2215 95isacompact2-wayfull-rangeloudspeakersystemcomprisedofone380mm(15in)low frequencydriverandone38mm(1 5in)exit 25mm

咨詢熱線：010－84572118
  • 產品特性
  • 詳細參數

技術規格

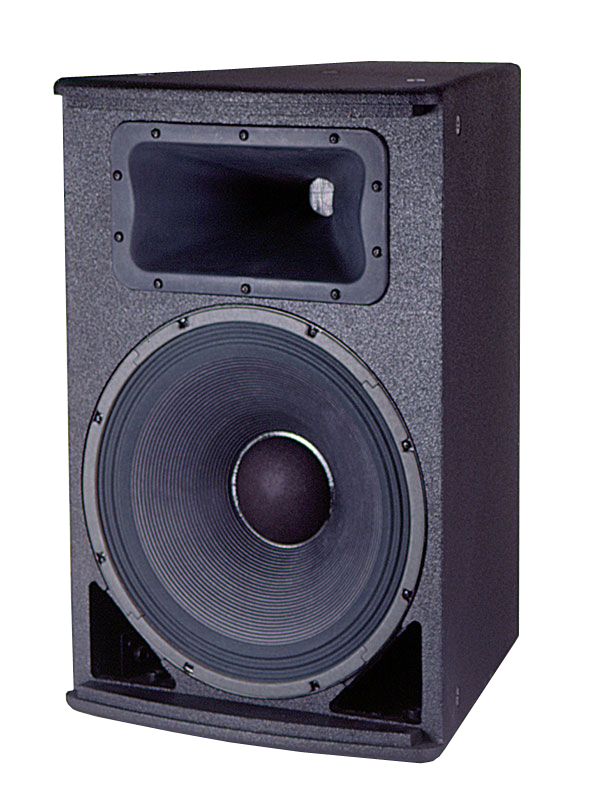

AC2215/95 is a compact 2-way full-range loudspeaker system comprised of one 380 mm (15 in) low frequency driver and one 38 mm (1.5 in) exit/ 25 mm (1 in) voice-coil compression driver.


Features :
?90° x 50° Coverage.
?PT? Progressive Transition? Waveguide for excellent pattern control with low distortion.
?Bi-Amp/Passive Switchable.
?Optional U-Bracket Model MTU-2.
?For fixed installation applications requiring a compact cabinet, such as small performing arts facilities, theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.


Specifications :
Frequency Range42 Hz - 19 kHz (-10 dB)
Frequency Response50 Hz - 17 kHz ( ± 3 dB)
Coverage Pattern90°x 50°
Directivity Factor (Q)8.9
Directivity Index (DI)9.5 dB
Crossover ModesBi-amp/Passive switchable
Passive Crossover Slopes4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES)LF: 275 W (1100 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
HF: 30 W (120 W peak), 2 hrs
Long-Term System Power Rating (IEC)Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPLBi-amp mode:
LF: 121 dB-SPL cont avg
(127 dB peak)
HF: 127 dB-SPL cont avg
(133 dB peak)
Passive mode:
121 dB-SPL cont avg
(127 dB peak)
System SensitivityPassive mode: 97 dB SPL (1W @ 1m)
