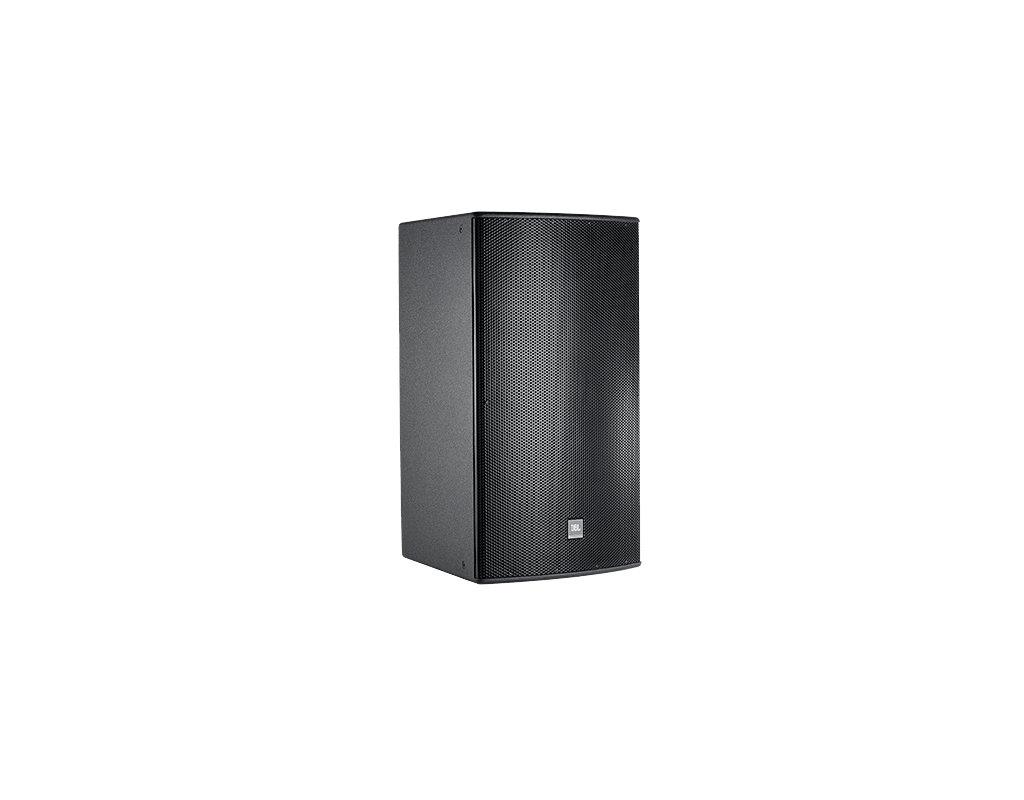

High Power 3-Way Loudspeaker

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive? low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

FEATURES
?    2265H Differential Drive? Low-Frequency Driver
?    CMCD? Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
?    2432H High-Frequency Compression Driver
?    PT? Progressive Transition Waveguide for excellent pattern control with low distortion.
?    Bi-Amp/Tri-Amp Switchable.
?    Optional planar array frame kit (see AE Series Array Guide).

APPLICATIONS
?    Performing arts facilities
?    Theatrical sound design
?    Auditoriums
?    Houses of worship
?    Live clubs
?    Dance-clubs/discotheques
?    Sports facilities
?    Themed entertainment venues

Frequency Range (-10 dB)	38 Hz – 20 kHz
Frequency Response (±3 dB)	45 Hz – 18 kHz
Coverage Pattern	/64: 60° x 40°, rotatable waveguide
Coverage Pattern	/95: 90° x 50°, rotatable waveguide
Directivity Index (DI)	13 dB
Crossover Modes	Tri-amp/Bi-amp switchable
Crossover Frequencies	300 Hz and 2.3 kHz
Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs
	750 W (3000 W peak), 100 hrs
	MF: 350 W (1400 W peak), 2 hrs
	HF: 100 W (400 W peak), 2 hrs
Long-Term System Power Rating (IEC)	LF: 600 W (2400 W peak), 100 hrs
Long-Term System Power Rating (IEC)	MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL	LF: 127 dB-SPL cont avg (133 dB peak)
	Tri-amp mode:
	MF: 133 dB-SPL cont avg (139 dB peak)
	HF: 135 dB-SPL cont avg (141 dB peak)
	Bi-amp mode:
	MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity of Passive	MF/HF Section in Bi-amp mode: 108 dB SPL
Sections (1W @ 1m)	MF/HF Section in Bi-amp mode: 108 dB SPL
Nominal Impedance System Sensitivity	8 ohms
Low Frequency Driver	1 x JBL 2265H 380 mm (15 in ) Differential Drive? driver with 75 mm (3 in)
Sensitivity (1W @ 1m)	97 dB SPL
(Low Frequency)	97 dB SPL
Midrange Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive? dual voice coil internal driver
Sensitivity (1W @ 1m)	108 dB SPL
(Midrange)	108 dB SPL
High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)	115 dB SPL
(High Frequency)	115 dB SPL
Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish	Black DuraFlex? finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL8 Neutrik Speakon? and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation)	967 x 561 x 657 mm
Dimensions (H x W x D in vertical cabinet orientation)	(38.1 x 22.1 x 25.9 in)
Net Weight	45.8 kg (101 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide
