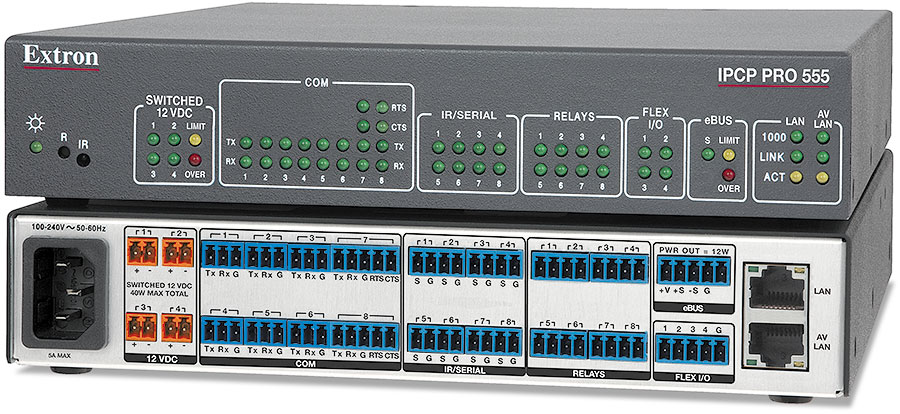

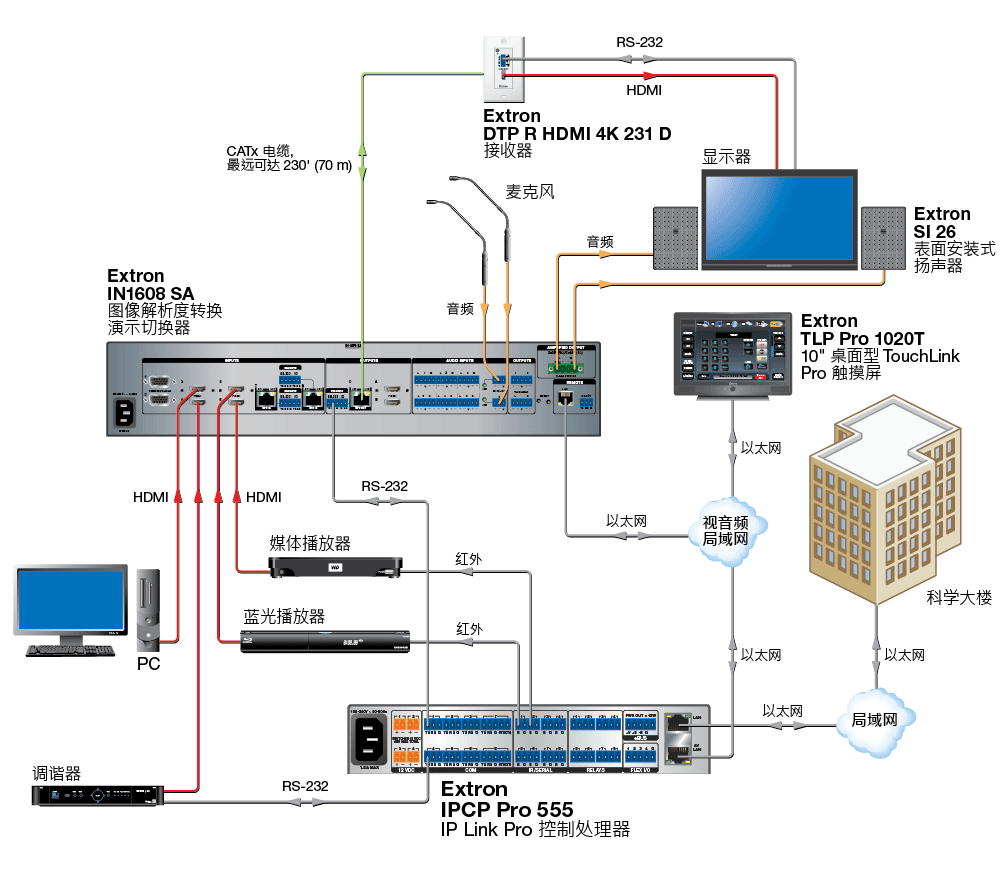

| IPCP Pro 555 |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 4.5 GB |
|
| Software and control options |
|---|
| Software | Extron Global Configurator? Plus and Professional for Windows?, Global Scripter? |
| Control options | GlobalViewer?, Extron Control for iPad and Web, TouchLink? Pro touchpanels, or eBUS? button panels |
|
| Ethernet control |
|---|
| Network interface controllers (NICs) | 2: 1 LAN, 1 AV LAN |
| Connectors | 2 female RJ-45 connectors |
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings |
|
| LAN | Link speed and duplex level = autodetected
IP address = 192.168.253.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS: 127.0.0.1 |
| AV LAN | Link speed and duplex level = autodetected
DHCP server = disabled
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0 |
| DHCP server disabled | IP address = 192.168.254.250
DNS = 127.0.0.1 |
| DHCP server enabled | IP address = 192.168.254.1
DNS = 192.168.254.1
Dynamic leased IP address pool = 192.168.254.100 - 192.168.254.149
Maximum lease count = 50
Lease time = 24 hours |
|
| Serial control |
|---|
| Quantity/type | 2 bidirectional RS-232, RS-422, RS-485 (ports 7 and 8)
6 bidirectional RS-232 (ports 1 through 6) |
| Connectors | (2) 3.5 mm captive screw connectors, 5 pole
(6) 3.5 mm captive screw connectors, 3 pole |
| Baud rate and protocol | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, or odd parity |
| NOTE The 5-pole ports support both hardware and software flow control.The 3-pole ports support software flow control.The default for both types of ports is no flow control. |
| Pin configurations |
|
| Serial, 5-pole captive screw |
| RS-232 (default) | Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS |
| RS-422 | Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ |
| RS-485 | Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ |
| Serial, 3-pole captive screw | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
|
| Flex I/O control |
|---|
| Quantity/type | 4 analog input or digital input/output (configurable) |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Digital inputs |
|
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
| Input impedance | 29k ohms |
| Programmable pullup | 1k ohms to +5 VDC |
| Threshold low to high | Programmable range: 100 mV to 24 VDC, default = 2.4 VDC |
| Threshold high to low | Programmable range: 100 mV to 24 VDC, default = 0.8 VDC |
| Digital outputs | 250 mA sink from 24 VDC max. |
| Analog inputs | 12 bit A/D, 0 to 24 VDC |
| Pin configurations | 1, 2, 3, 4 = flex I/Os 1, 2, 3, 4; 5 = Gnd |
|
| IR/serial control |
|---|
| Quantity/type | 8 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| Connectors | (4) 3.5 mm captive screw connectors, 4-pole |
| Baud rate and protocol (RS-232) | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, or odd parity |
| Pin configurations | For each port, pin 1 = signal, 2 = Gnd |
| IR output carrier frequency | 30 kHz to 300 kHz |
| IR learning carrier frequency | 30 kHz to 300 kHz |
| IR learning capture distance | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
|
| Relay control |
|---|
| Quantity/type | 8 normally open relays |
| Relay control connectors | (4) 3.5 mm captive screw connectors, 4 pole |
| Relay control contact rating | 24 VDC, 1 A |
|
| eBUS control |
|---|
| eBUS control ports | (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) |
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. |
| eBUS power output | 12 watts |
|
| Switched DC power output |
|---|
| Quantity/type | 4 switched 12 VDC outputs |
| Connectors | (4) 3.5 mm captive screw connectors, 2 pole |
| Power | Maximum 40 watts total |
| Power sense |
|
| Range | 0.1 watt to 40 watts |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | 65.2 watts |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 45.8 BTU/hr |
| Mounting |
|
| Rack mount | Yes, with optional 1U rack shelf |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 26.7 cm D)
(Depth excludes connectors.) |
| Product weight | 2.5 lbs (1.1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
| Safety | CE, c-UL, UL
UL Listed for use in plenum air handling spaces |
| EMI/EMC | CE, C-Tick, FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. |
| NOTE Specifications are subject to change without notice. |
|
|
