支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板 支持行業安全標準的通信協議 支持 LinkLicense? 6 個支持軟件握手的雙向 RS-232 串行端口 2 個支持硬件和軟件握手的雙向 RS-232 RS-422 RS-485 串行端口

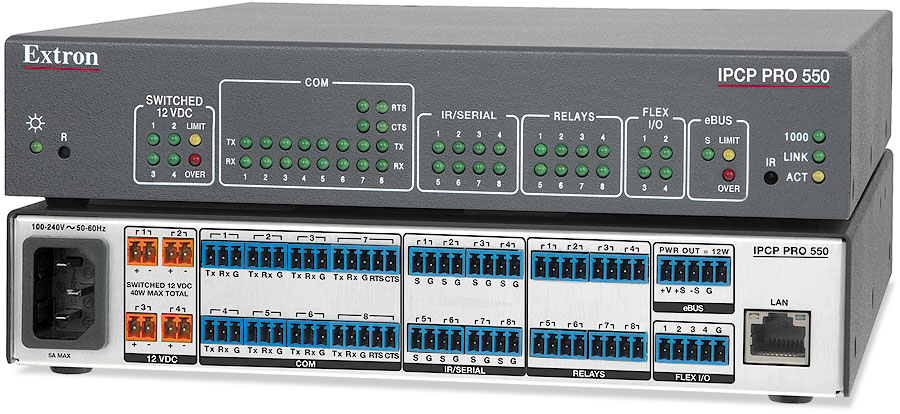

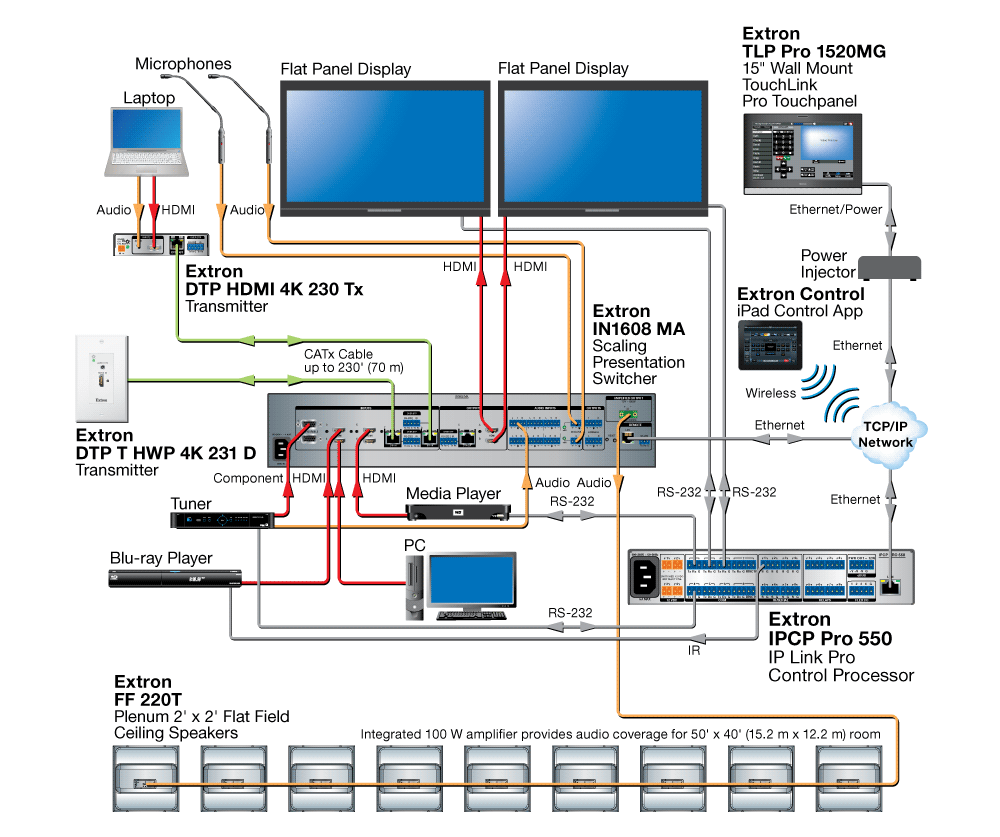

Extron IPCP Pro 550 是一款通用的高性能控制處理器，設計在較大型應用環境中進行集中式視音頻控制。作為 IP Link? Pro 系列的組成部分，IPCP Pro 550 采用安全標準和千兆以太網，確保了在標準網絡架構上與多個 TouchLink? Pro 觸摸屏兼容。它還支持 Extron LinkLicens?，進一步增強了 Extron Pro 系列控制系統的功能。IPCP Pro 550 是控制一個視音頻系統內的多個設備和多種控制信號類型的理想之選。
特性
支持 TouchLink? Pro 觸摸屏和 eBUS? 按鍵面板
支持行業安全標準的通信協議
支持 LinkLicense?
6 個支持軟件握手的雙向 RS-232 串行端口
2 個支持硬件和軟件握手的雙向 RS-232/RS-422/RS-485 串行端口
8 個紅外/串行端口，用于外部設備的單向控制
4 個 Flex 輸入/輸出端口
8 個繼電器，用于控制房間功能
eBUS 端口用于連接 eBUS 按鍵面板和附件
4 路可獨立開關的 12 VDC 電源輸出
以太網監視和控制
支持常見的 BMS（建筑管理系統）協議，如 BACnet、KNX 和 DALI
| IPCP Pro 550 | |
| Memory | |
|---|---|
| | 512 MB |
| | 4.5 GB |
| Software and control options | |
| | Extron Global Configurator? Plus and Professional for Windows?, Global Scripter? |
| | GlobalViewer?, Extron Control for iPad and Web, TouchLink? Pro touchpanels, or eBUS? button panels |
| Ethernet control | |
| | 1 |
| | 1 female RJ-45 connector |
| | 10/100/1000Base-T, half/full duplex with autodetect |
| | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| | Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1 |
| Serial control | |
| | 2 bidirectional RS-232, RS-422, RS-485 (ports 7 and 8) 6 bidirectional RS-232 (ports 1 through 6) |
| | (2) 3.5 mm captive screw connectors, 5 pole (6) 3.5 mm captive screw connectors, 3 pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| NOTE The 5-pole ports support both hardware and software flow control.The 3-pole ports support software flow control.The default for both types of ports is no flow control. | |
| | |
| Serial, 5-pole captive screw | |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd, 4 = RTS, 5 = CTS |
| | Pin 1 = Tx-, 2 = Rx-, 3 = Gnd, 4 = Tx+, 5 = Rx+ |
| | Pins 1 and 2 (tied together) = data-, 3 = Gnd, 4 and 5 (tied together) = data+ |
| | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
| Flex I/O control | |
| | 4 analog input or digital input/output (configurable) |
| | (1) 3.5 mm captive screw connector, 5 pole |
| | |
| | 0 to 24 VDC, clamped at +30 VDC |
| | 29k ohms |
| | 1k ohms to +5 VDC |
| | Programmable range: 100 mV to 24 VDC, default = 2.4 VDC |
| | Programmable range: 100 mV to 24 VDC, default = 0.8 VDC |
| | 250 mA sink from 24 VDC max. |
| | 12 bit A/D, 0 to 24 VDC |
| | 1, 2, 3, 4 = flex I/Os 1, 2, 3, 4; 5 = Gnd |
| IR/serial control | |
| | 8 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| | (4) 3.5 mm captive screw connectors, 4-pole |
| | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity |
| | For each port, pin 1 = signal, 2 = Gnd |
| | 30 kHz to 300 kHz |
| | 30 kHz to 300 kHz |
| | 2" (5.1 cm) to 12" (30.5 cm) from the front panel |
| Relay control | |
| | 8 normally open relays |
| | (4) 3.5 mm captive screw connectors, 4 pole |
| | 24 VDC, 1 A |
| eBUS control | |
| | (1) 3.5 mm captive screw connector, 5 pole (uses 4 poles) |
| | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| | Extron STP20-2/1000 or STP20-2P/1000 cable |
| | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS Technology Reference Guide for details. |
| | 12 watts |
| Switched DC power output | |
| | 4 switched 12 VDC outputs |
| | (4) 3.5 mm captive screw connectors, 2 pole |
| | Maximum 40 watts total |
| | |
| | 0.1 watt to 40 watts |
| General | |
| | Internal Input: 100-240 VAC, 50-60 Hz |
| | 61.8 watts |
| | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| | Convection, no vents |
| | 33.3 BTU/hr |
| | |
| | Yes, with optional 1U rack shelf |
| | Metal |
| | 1.7" H x 8.7" W x 10.5" D (1U high, half rack wide) (4.3 cm H x 22.1 cm W x 26.7 cm D) (Depth excludes connectors.) |
| | 2.5 lbs (1.1 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| | CE, c-UL, UL UL Listed for use in plenum air handling spaces |
| | CE, C-Tick, FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS, WEEE |
| | 3 years parts and labor |
| | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
